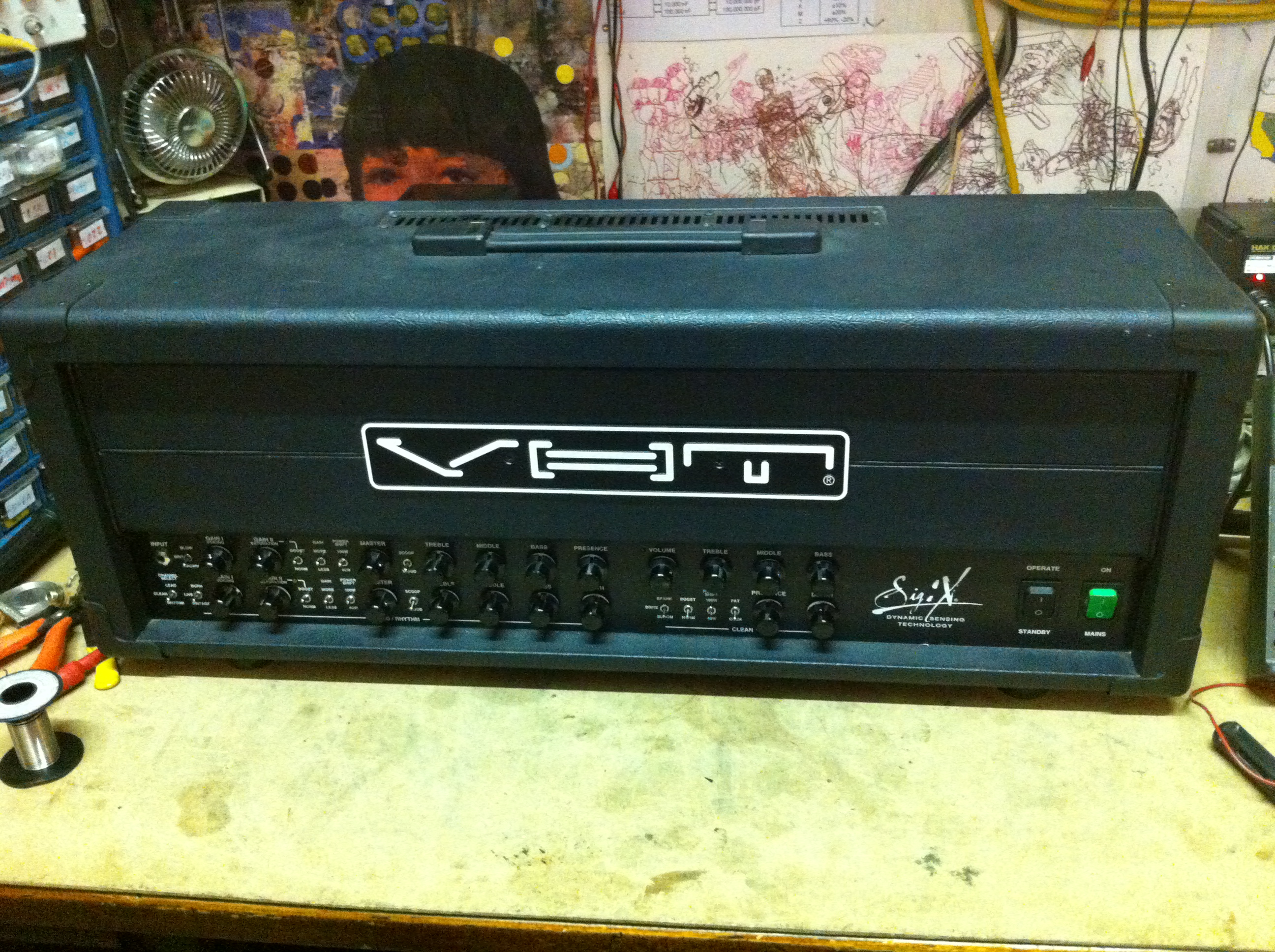

VHT Sig: X with all the bells and whistles. It has 3 channels which are individually switchable between 40 and 100W.
The power tubes were replaced and with its two new KT88s it did 90W at clipping in 100W mode. It can do 100W with 42W plate dissipation power tubes but the new ones were only 35W. This is all fine though no worries. This amp performed nice.

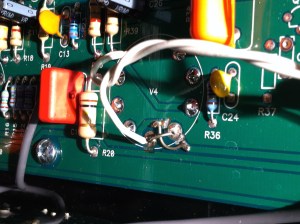

Lots of little bodges on this one and I don’t know if this amp went through many revisions over the years or if they just printed the PCB totally errorful and had to make corrections. All 9 pin tube sockets were wired wrong and were factory corrected.

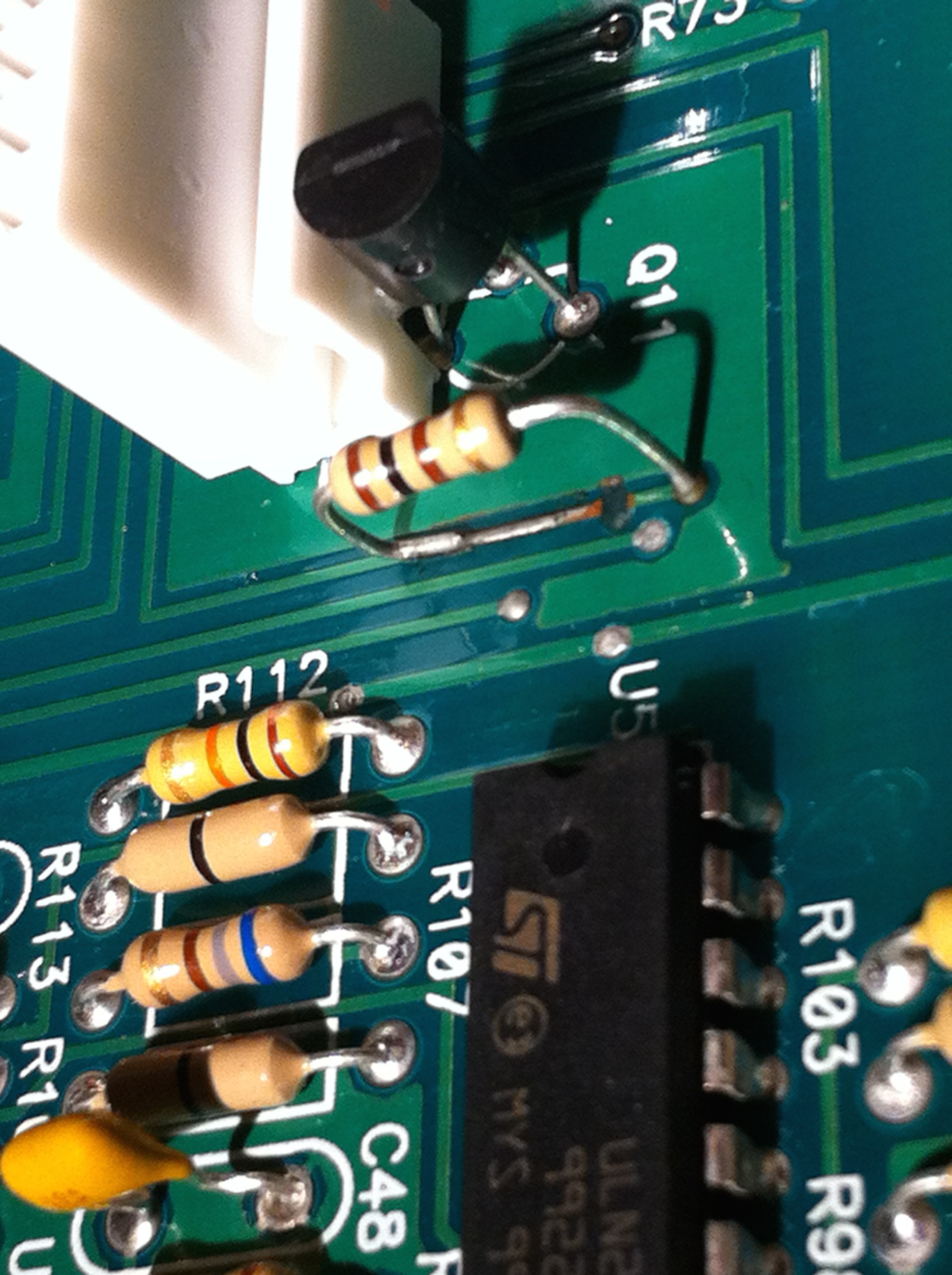

No worries, whack in a 100 ohm resistor and she’ll be right.

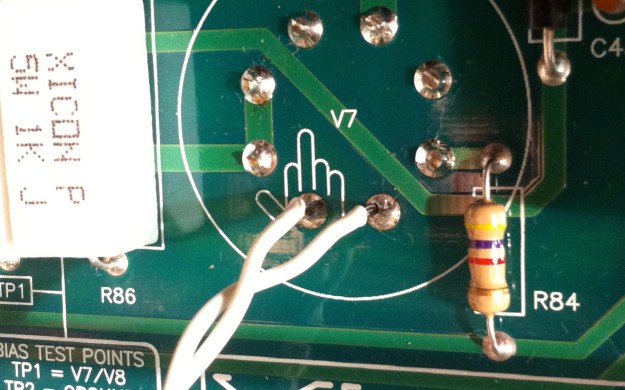

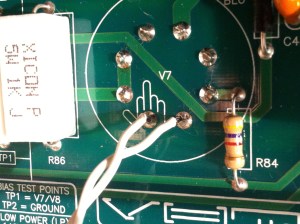

A doube fuck you. The FU gesture + that solder connection next to it is just hanging by a thread, how rude.

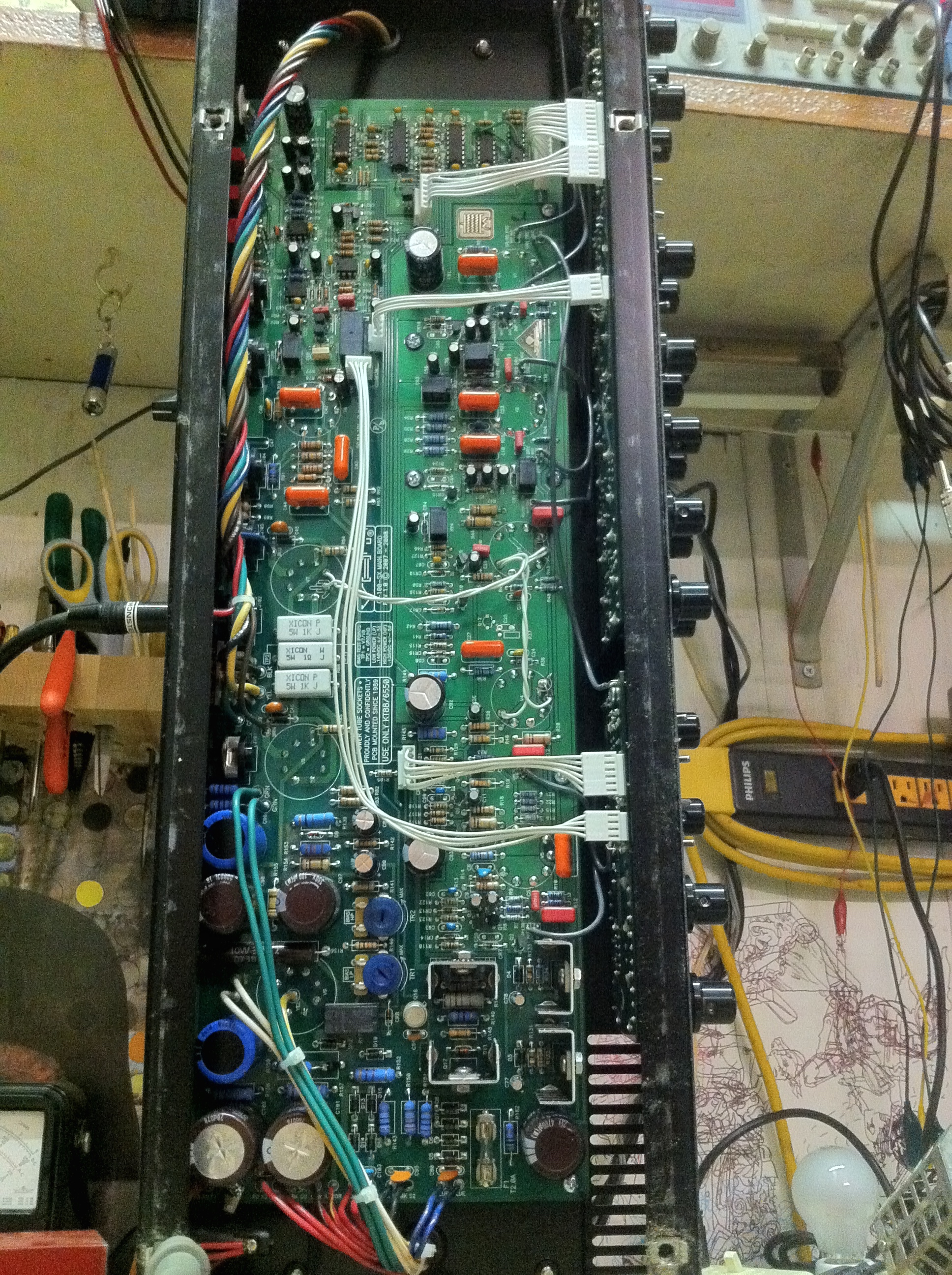

No schematic that I know of for this model. Has individual bias trimpots for high and low power. That’s pretty awesome. It has that nasty “one big PCB” phenomenon going on but at least all the solder connections are on the top side.
