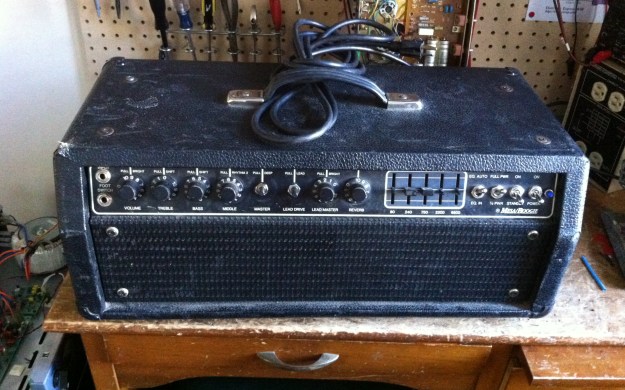

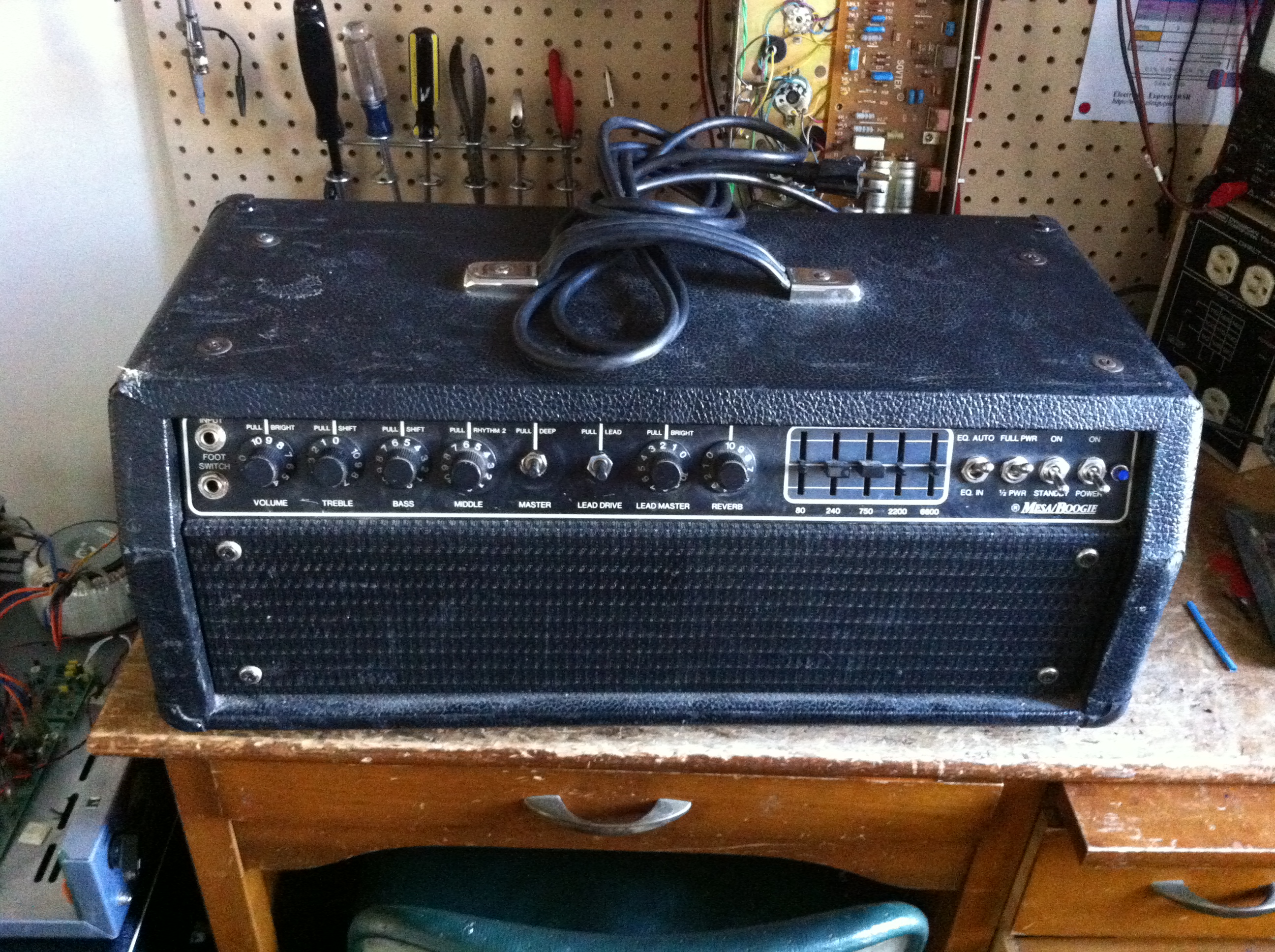

Mark III in for repair, basically just needing new power tubes. Also had 2 broken push pull pots and a broken fuse holder. Used by such famous rockers as Today is the Day, Weezer, and NOFX, and more.

Mark III in for repair, basically just needing new power tubes. Also had 2 broken push pull pots and a broken fuse holder.
Used by such famous rockers as Today is the Day, Weezer, and NOFX, and more.

High tech amp. Has a simul-class power section which biases two power tubes in class A and two tubes in class AB through the same output transformer. SO, at idle two tubes bias at about 70mA and drop to 30-40mA when cranked (class A), while the other two idle around 30-40mA and rise to about 120-130mA when cranked (class AB). Also has half power option which, instead of limiting the power in the 4 tube simul-class output section, switches you over to another 2 power tubes. This amp had 6L6s for the simul-class section and EL34s for the half power option, although you could use 6L6s for the half power mode as well, from what I've read. A total of 6 power tubes in this amp

High tech amp. Has a simul-class power section which biases two EL34s in class A and four 6L6s tubes in class AB through the same output transformer. SO, at idle the EL34s when selected bias at about 70mA and drop to 30-40mA when cranked (class A), while the 6L6s idle around 30-40mA and rise to about 120-130mA when cranked (class AB).

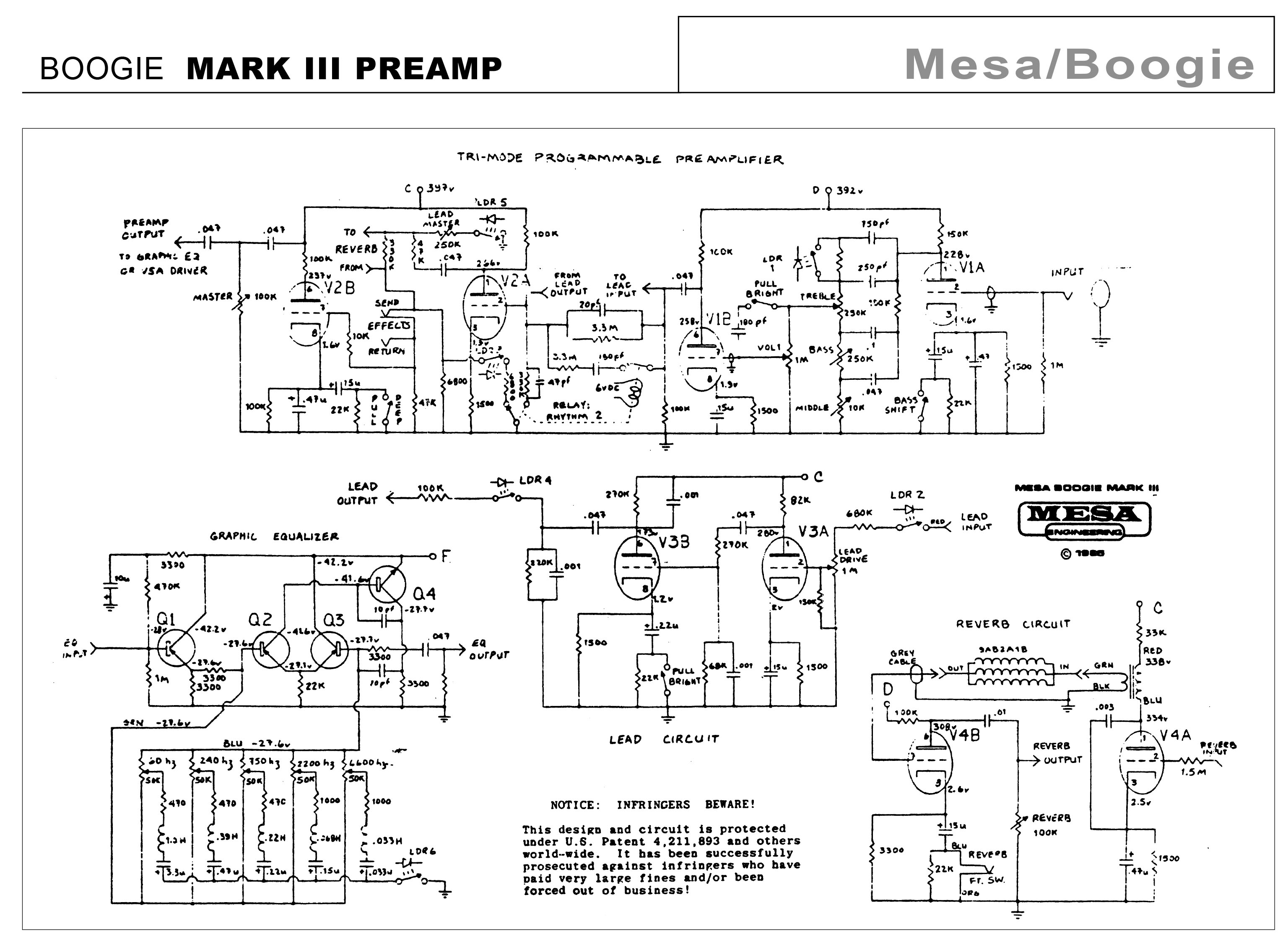

Mesa Boogie Mark III preamp

Mesa Boogie Mark III preamp

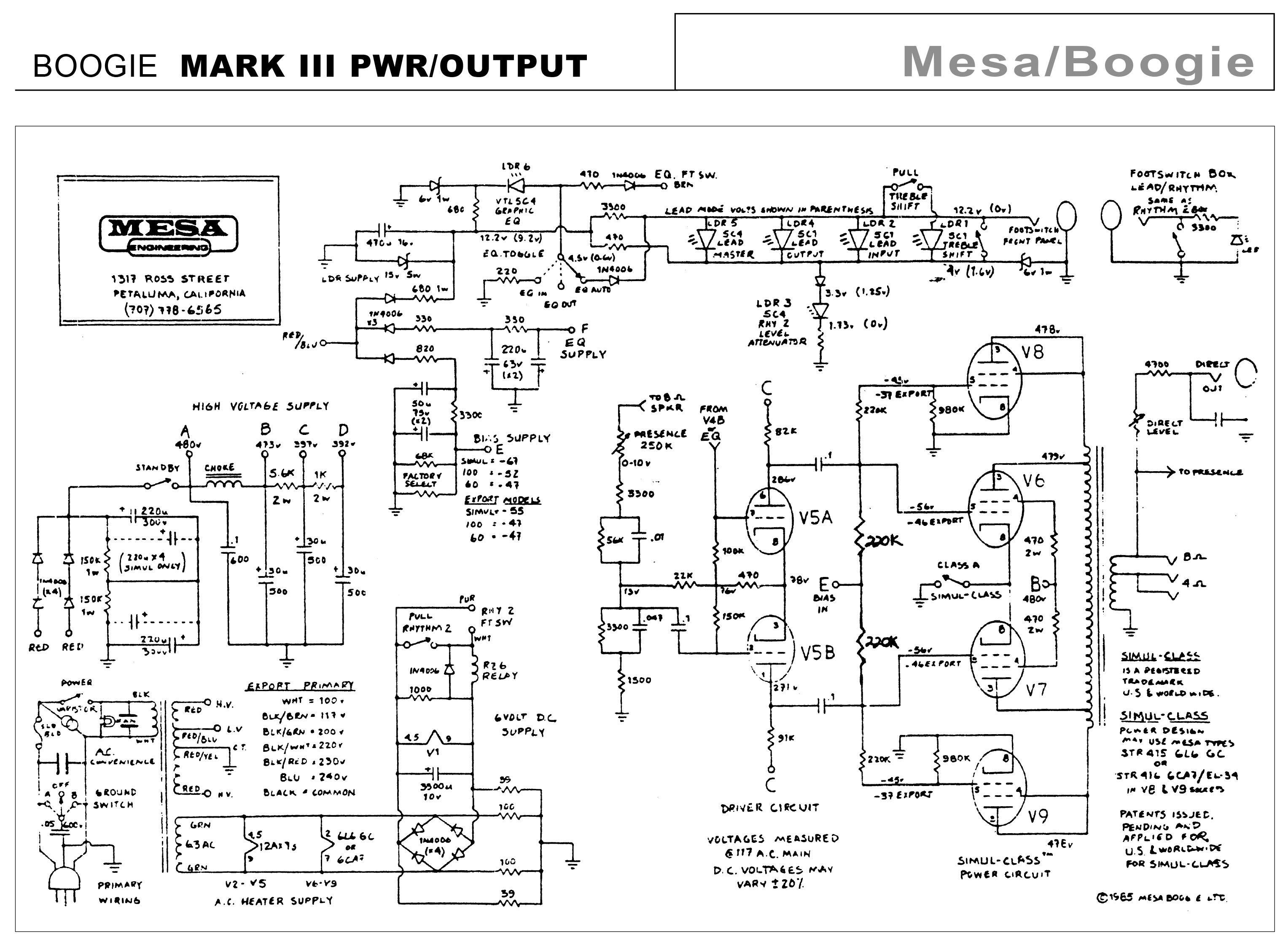

Mesa Boogie Mark III power amp and power supply

Mesa Boogie Mark III power amp and power supply
