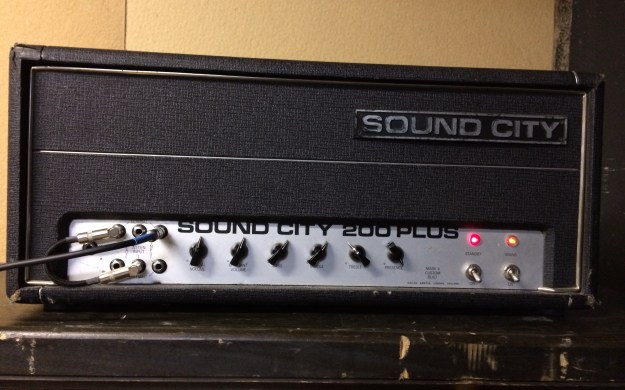

Behemoth Sound City 200+. Huge power section with four KT-88s was doing about 210W at clipping as per my measurement.

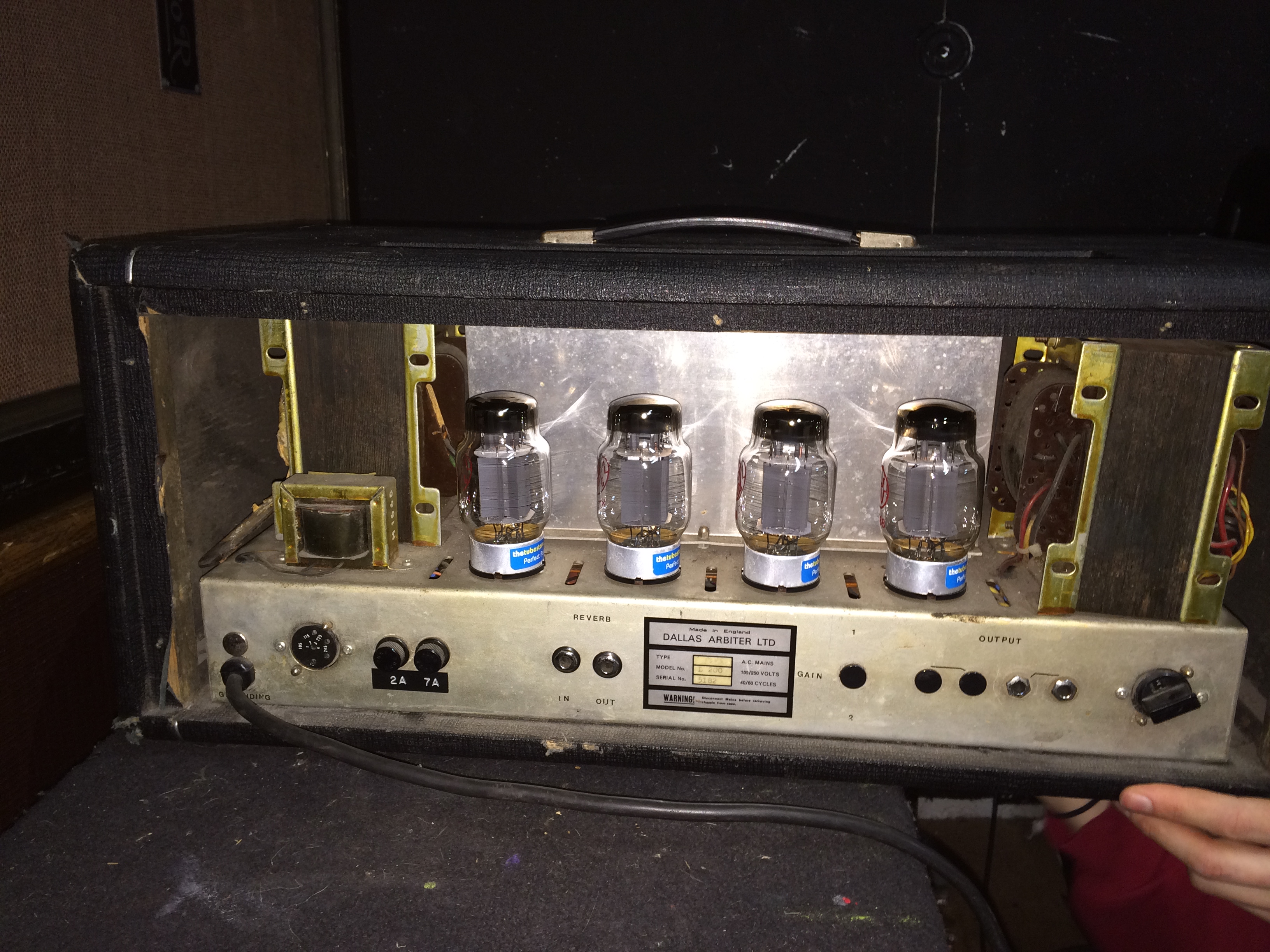

Behemoth Sound City 200 Plus. Huge output section with four KT-88s. There is a Normal channel and a Brilliant channel which can be patched together and blended with their respective volume knobs.

Partridge transformers in this one. you can tell because of the yellowish tint in the metal -- they have been dipped in some type of epoxy. Other Sound City's came with Electro Voice (not the same as the speaker company) transformers. They are not dipped and maintain a silver metallic look. Otherwise they look almost identical to the Partridge brand.

Partridge transformers in this one.  You can tell because of the yellowish tint in the metal — they have been dipped in some type of lacquer or something. Other Sound City’s came with Electro Voice  transformers (not the same as the speaker brand). They are not dipped and maintain their silver metallic look. Otherwise they look almost identical to the Partridge brand.

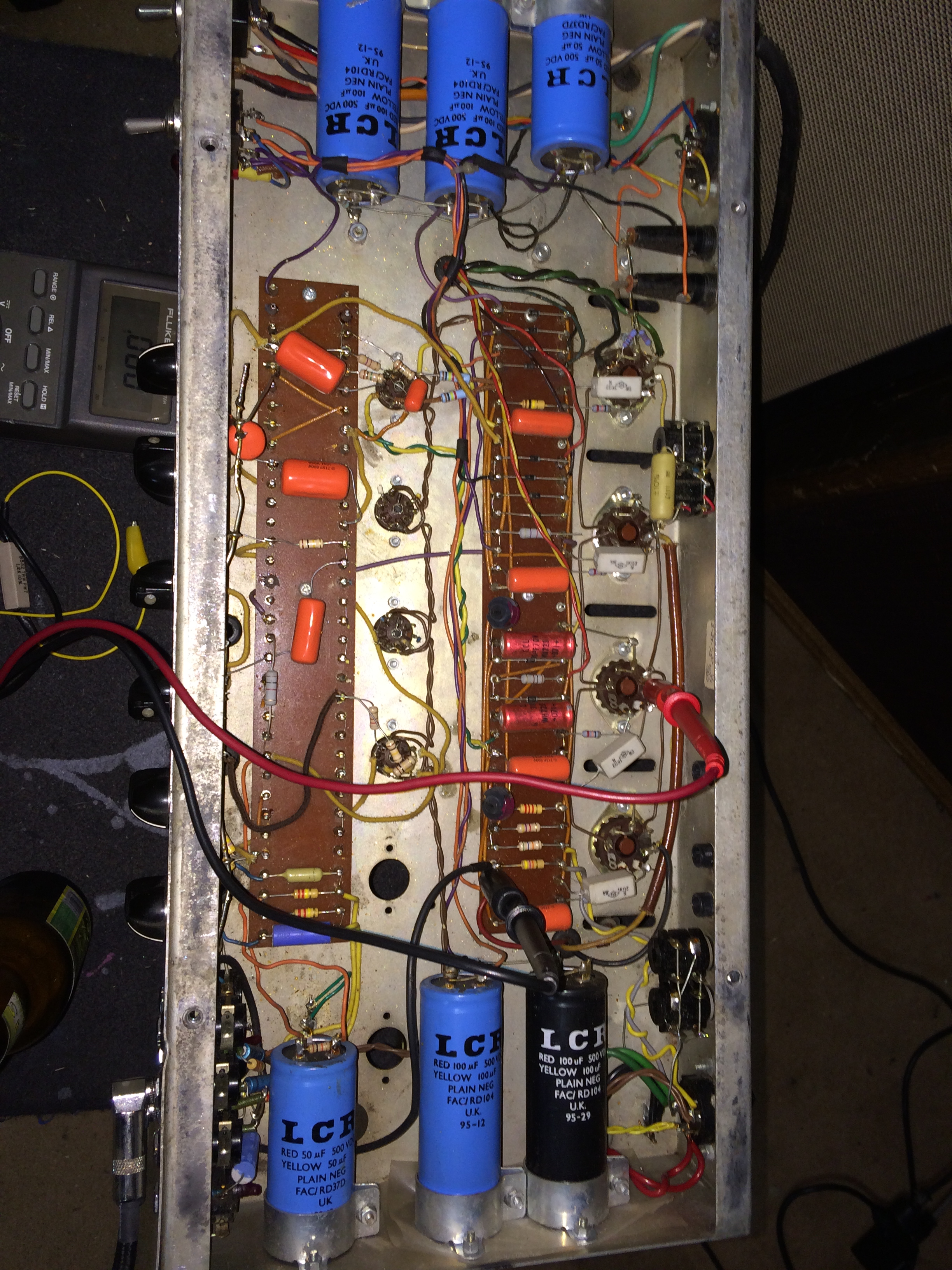

Some clever person along the way has totally gutted the preamp and built a very simple Fender-style one. It has one. Notice the preamp has four tube sockets and the middle two are empty, except for the heater winding. This amp uses a single 12AX7 preamp tube. The other 9-pin tube is the phase inverter, which feeds the signal the the four KT-88s in the output section.

Some clever person along the way has totally gutted the preamp and built a very simple Fender-style one. Notice that of the four 9-pin tube sockets the middle two have no wires going to the pins, except for the heater winding. The tube will light up for your amusement but it’s otherwise not connected to the circuit at all. This amp uses a single 12AX7 preamp tube. The other 9-pin tube is the phase inverter, which feeds the signal to the output section. Very minimal.

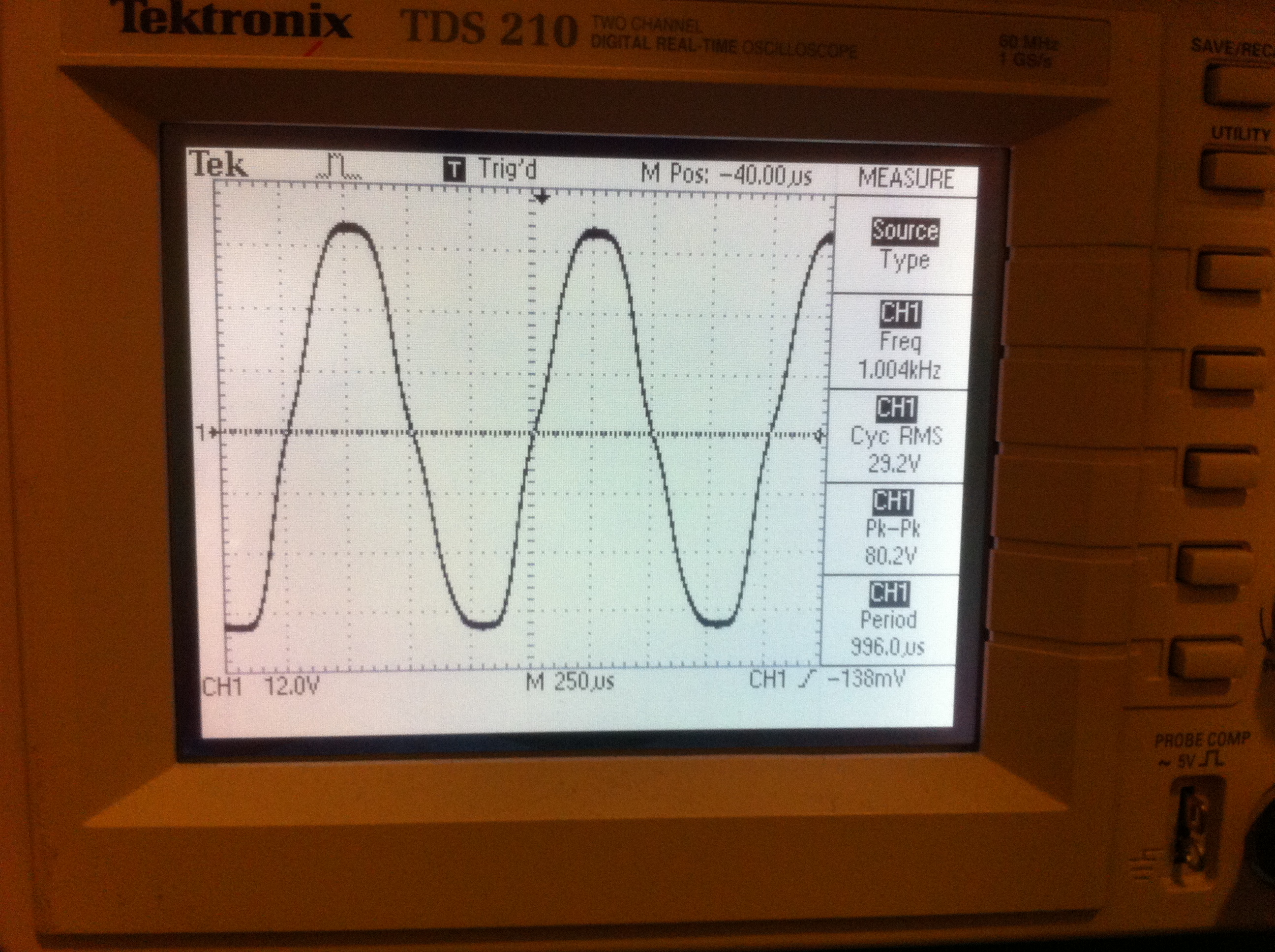

Outrageously doing 29.2V into 8 ohms for about 210W at clipping dayum

Outrageously doing 29.2V into 4 ohms for about 213W at clipping dayum

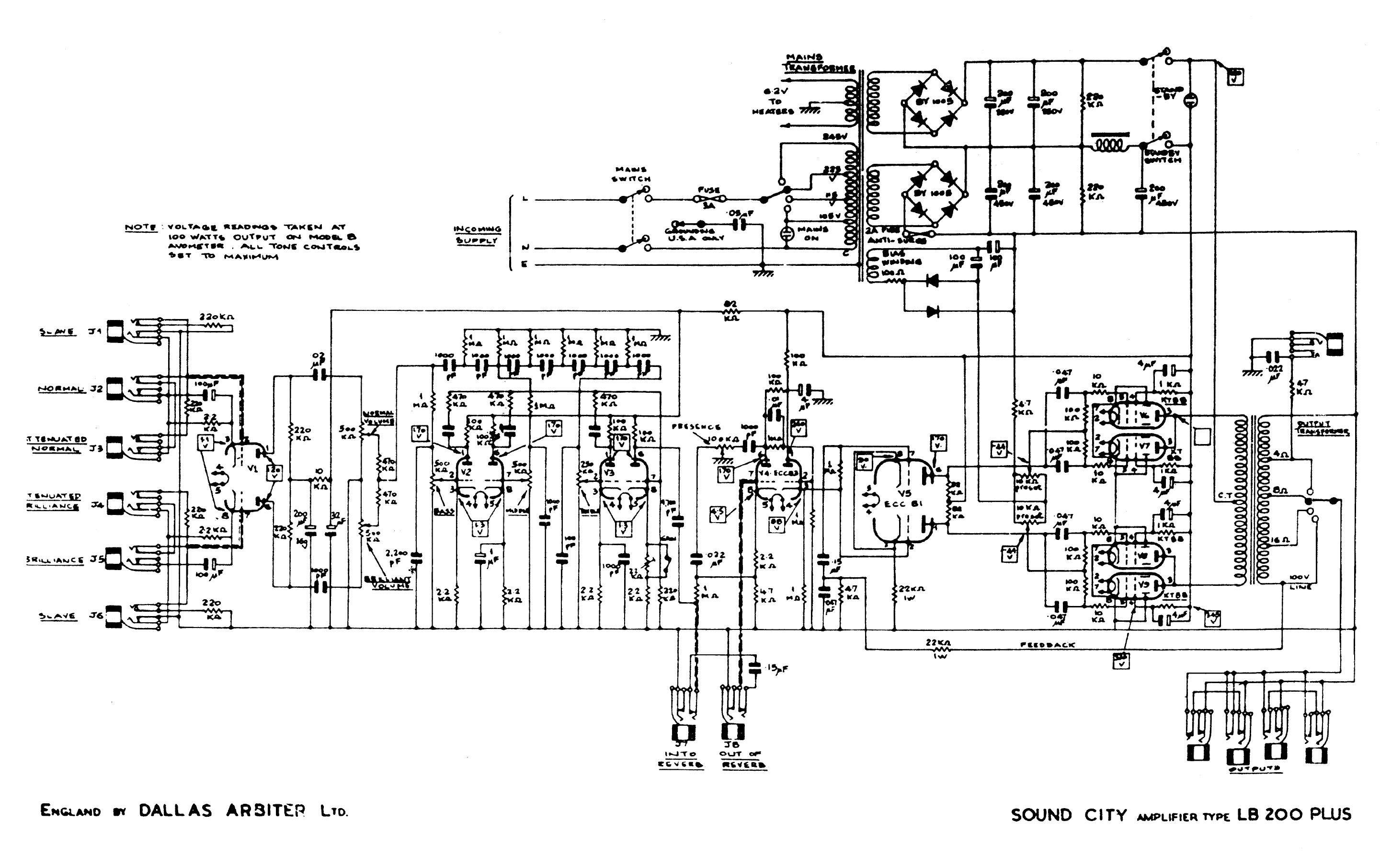

Sound City LB 200 Plus schematic

Sound City LB 200 Plus schematic
