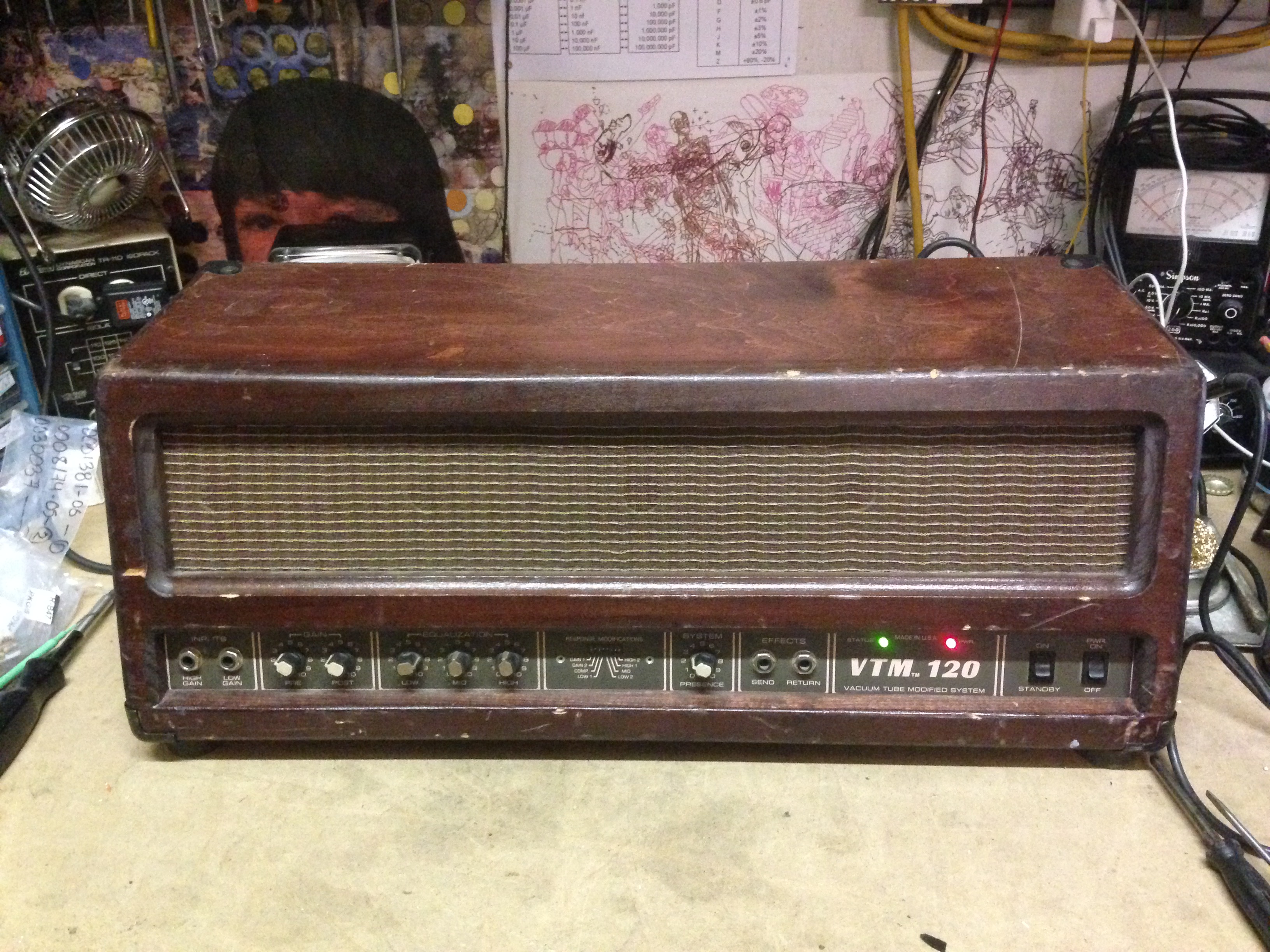

Peavey VTM120 in an Emperor custom head case. Looks pretty awesome. Someone’s dream came true. Has a handful of dip switches on the front panel to control how much gain, and high and low boosts. You can literally add in each triode of the 3rd 12AX7 in the preamp with the two gain dip switches, controlling how much distortion is available.
Well, very similar to the Butcher in layout but one more 12AX7 in the preamp for extra gain to meet the rock demands of the time (late 80s). Not much to see really since most of the components are mounted on the other side of the board. So modular. Pretty easy to work on. No problems here other than needing new power tubes.

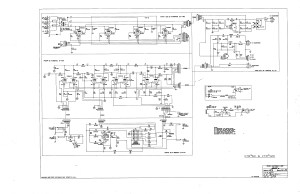

Peavey VTM 120 schematic

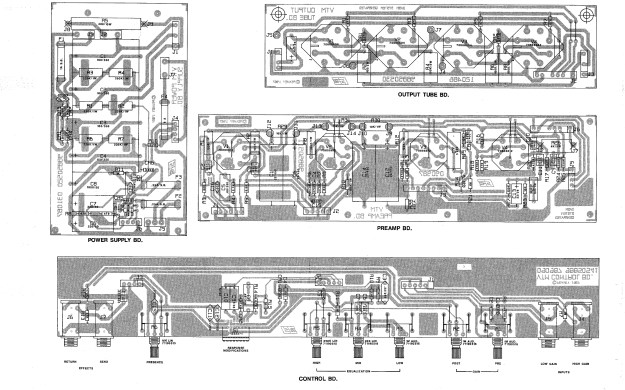

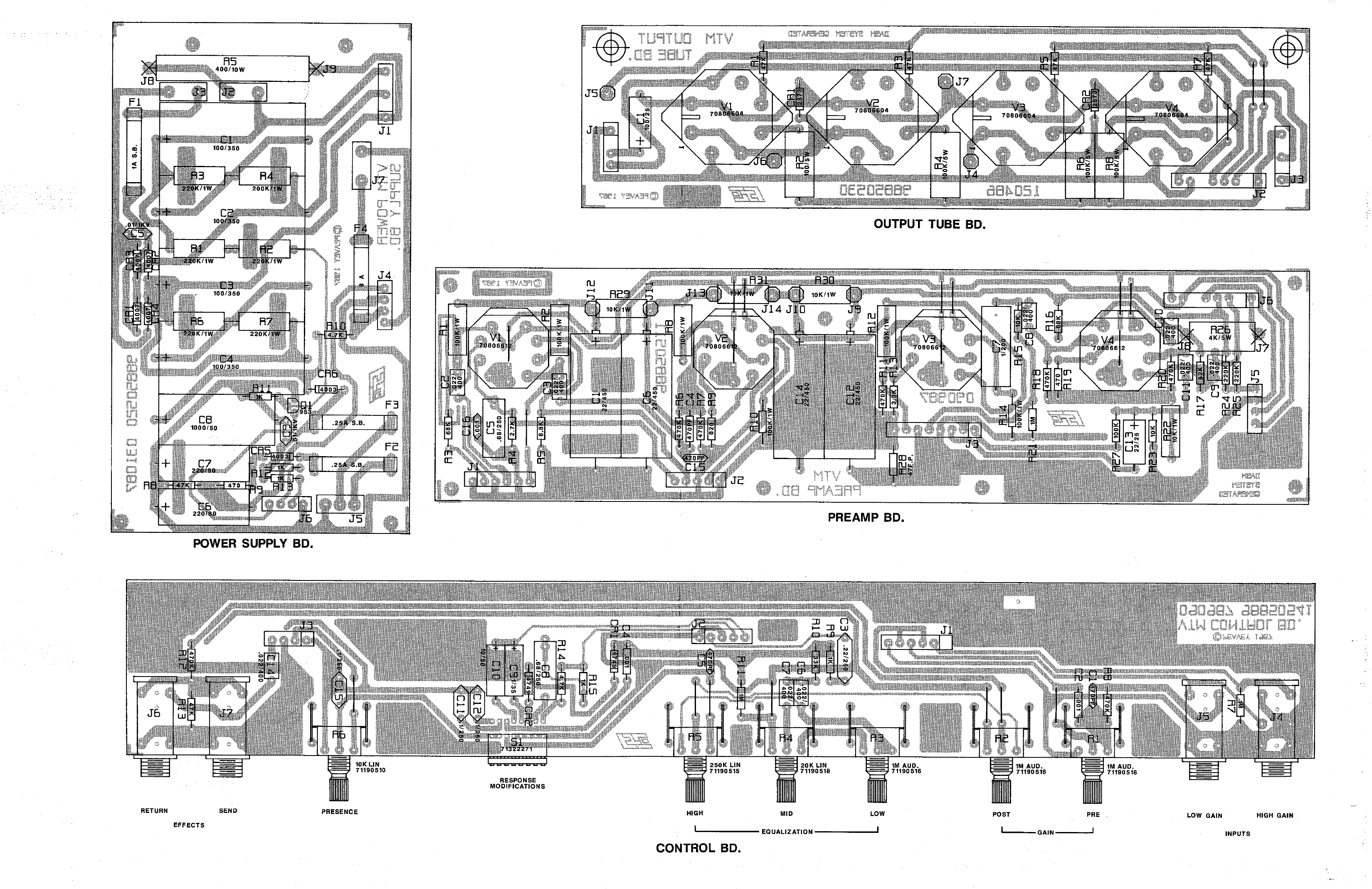

Peavey VTM 120 layout
