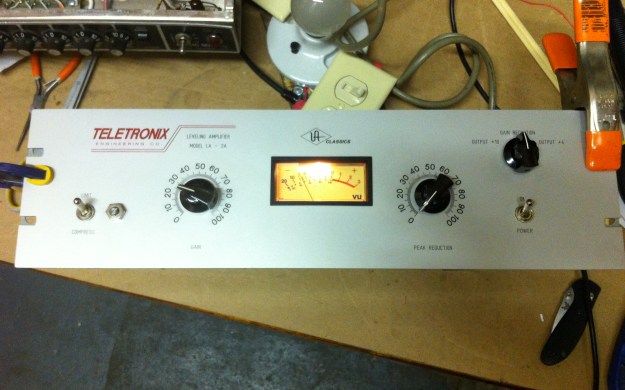

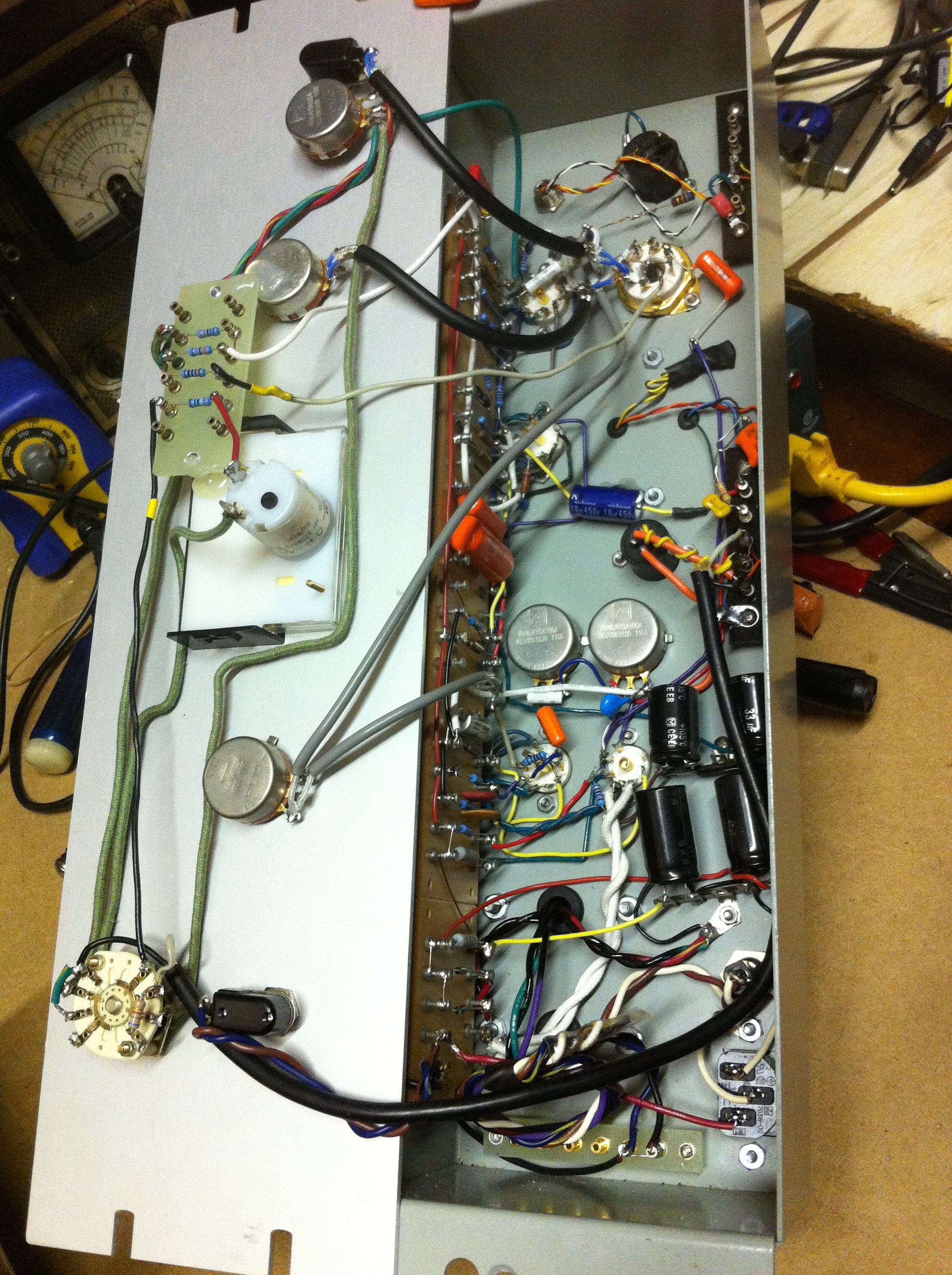

I don’t really know anything about recording gear but this is a Teletronix LA-2A kit I partially built. I say partially because someone else started it, abandoned it and sold it and it eventually it made it’s way to me.
A nice piece any studio or recording person will surely be familiar with. This is now at Bricktop Recording compressing and limiting some shit.
Teletronix LA2A schematic. The schematic is valuable. There is an error or two on the layout and the color coding of things can throw you off.

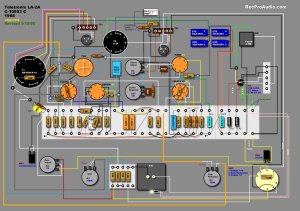

Teletronix LA2A layout
Look at the green wire going from fuse to ground. How is that even possible. Don’t do that. Or please enlighten me. Got some news: “just wanted to clarify what looks like a grounded fuse on Cayocosta’s layout for the LA2A you built. It’s not obvious from the layout but it’s using a fused IEC inlet and not an actual grounded fuse! =P” Thanks!
