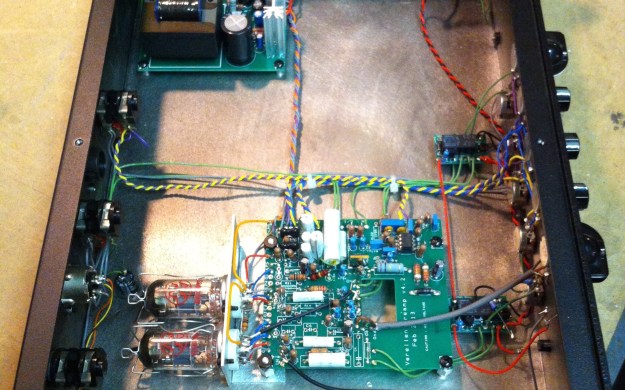

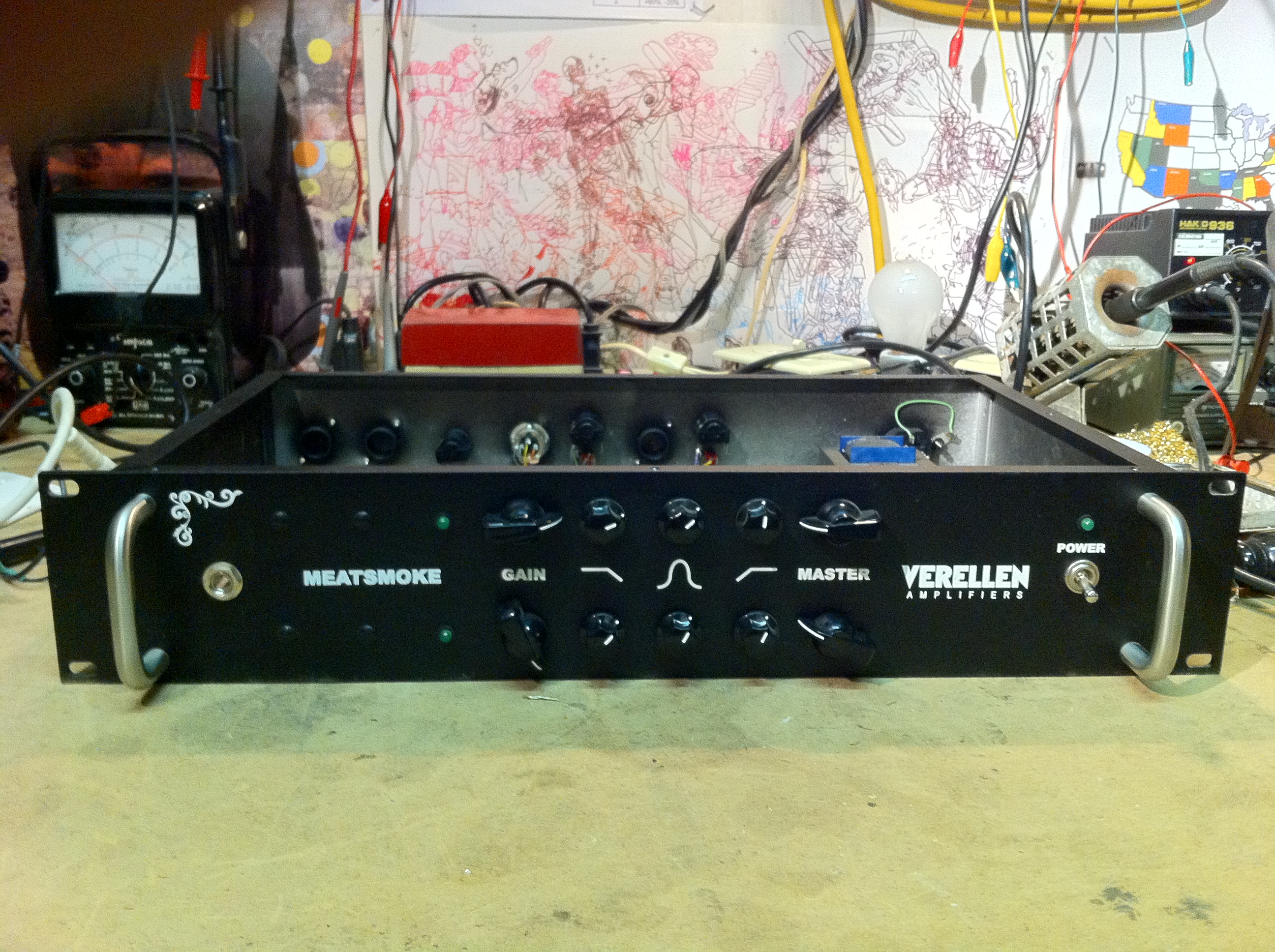

Verellan Meatsmoke preamp. From what I gathered this was some sort of kickstarter prototype and only 5 were made. This is #2. There was an error in either the build, or the printing of the PCB, so a 100K resistor needed to be removed, and another one added between two caps in the preamp.

Verellan Meatsmoke preamp. From what I gathered this was some sort of kickstarter prototype and only 5 were made. This is #2. There was an error in either the build, or the printing of the PCB, so a 100K resistor needed to be removed, and another one added between two caps in the preamp.

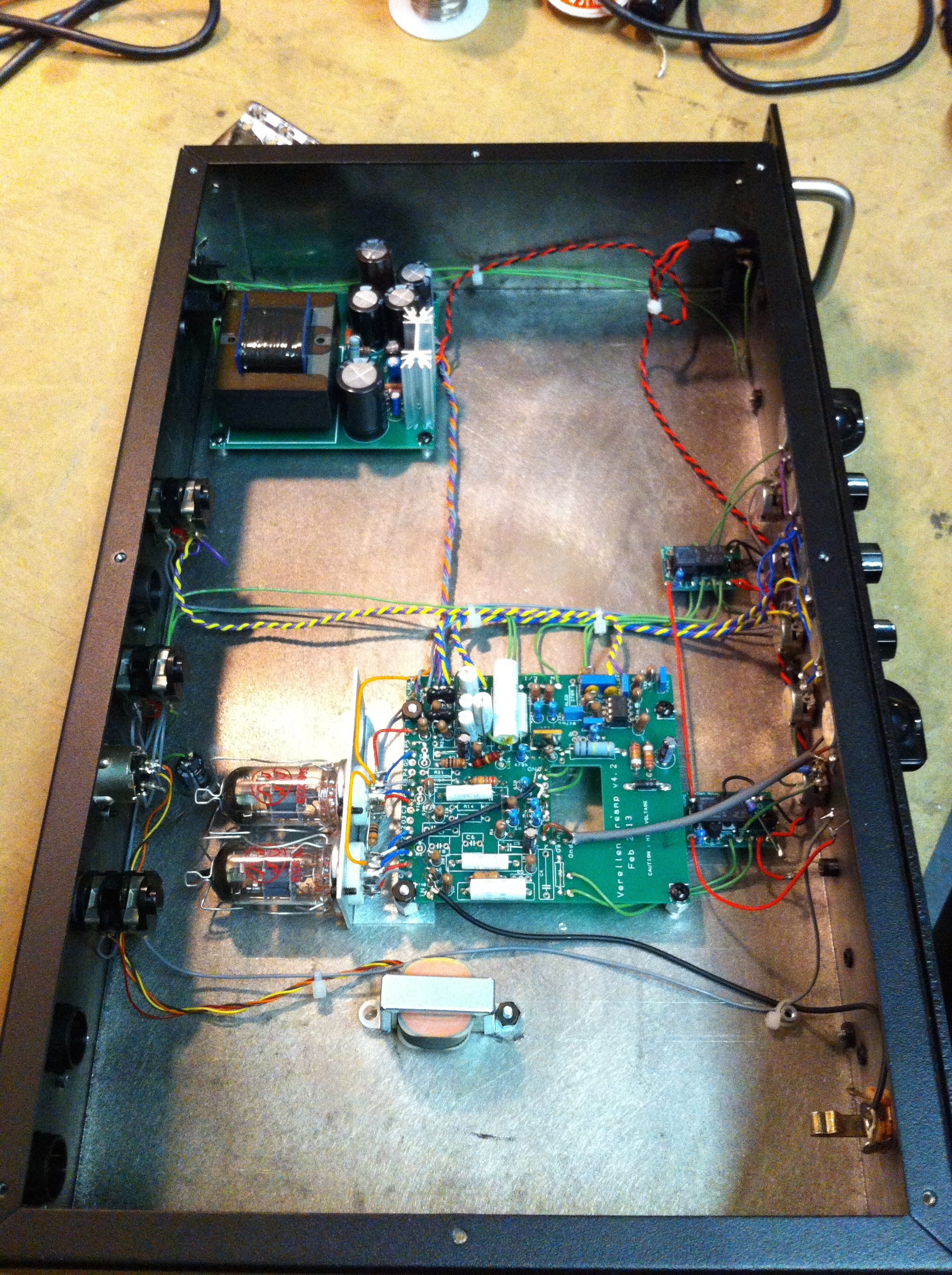

Basically just a little tube preamp with two 12AX7s. You can see the little power supply for them in the top left corner. I believe these never went into full production because they made it into a pedal instead. Sorry but no schematic for this one. If you have one please share.

Basically just a little tube preamp with two 12AX7s. You can see the little power supply for them in the top left corner. I believe these never went into full production because they made it into a pedal instead. Sorry but no schematic for this one. If you have one please share.
